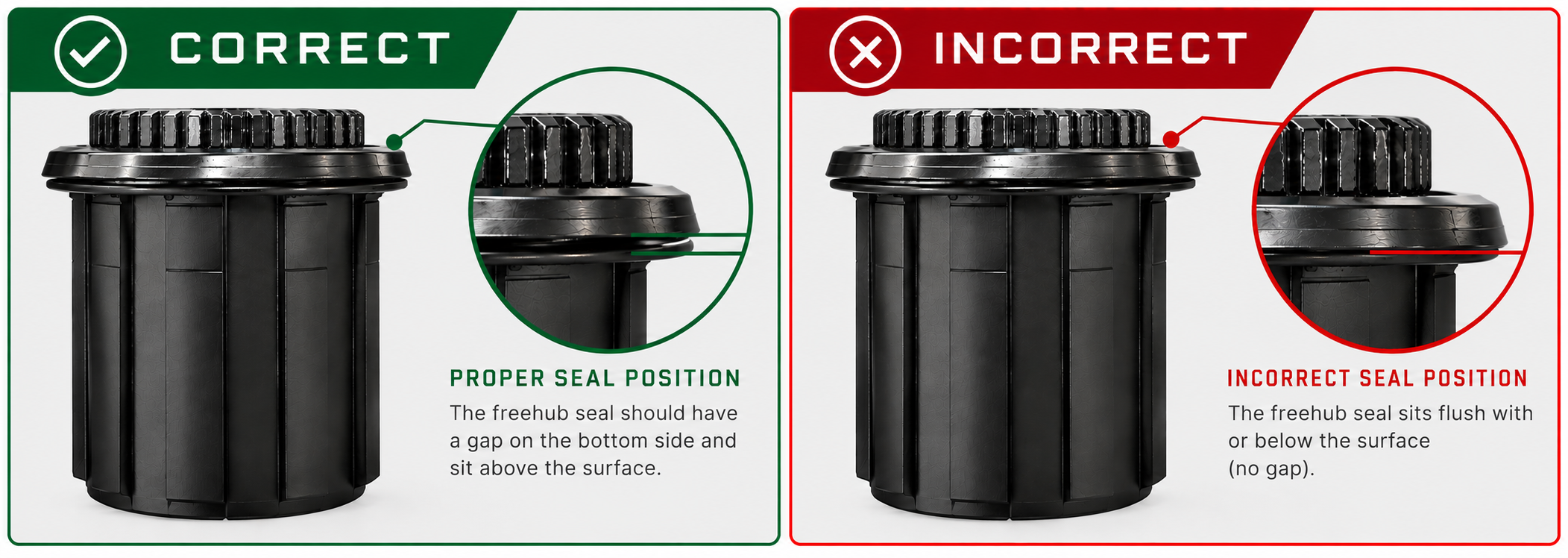

Proper Innerdrive freehub seal and position is critical. If your freehub seal is positioned too high or over the flange of the freehub and does not spin freely please reinstall properly as seen on the left image, with that small gab between the rubber seal and flange.
|
Bearing sizes for INNERDRIVE |
Front Bearings: QTY (2) 6902 (15x28x7) Rear Bearings: QTY (2) 17x28x7 |
| Are spokes proprietary? If not, what kind exactly? |
No they are not proprietary. Our Innerdrive Straight pull hubs use Sapim CX-Ray TCS OH Straight Pull are used to prevent spoke twisting. Any standard straight pull spoke can be utilized, however. |
| What Spoke tension should be applied to an ENVE rim with a straight-pull Innerdrive hub? |
On the rear hub, the drive side is built to 120 kgf. The disc side will be lower. How much lower will depend on what rim it is being built to. The important thing on the disc side is that the spoke tensions are all similar or balanced even though they are lower. On the front hub, the disc side is built to 120 kgf. The drive side will be lower. How much lower will depend on what rim it is built to. The important thing on the drive side is that the spoke tensions are all similar or balanced even though they are lower. |
| Service interval? | A basic level service every 12 months to inspect and clean is recommended. Usage, mileage, riding conditions, and climate will affect this interval. |
| Does maintenance require any special tools to take apart? | Only 19mm wrenches are needed for the front hub, and 18mm wrenches for the rear hub. To upgrade or swap ratchets, a simple mechanic’s pick is needed. |
| If I am going from shimano over to sram 12psd, what do I need? | ENVE INNERDRIVE XDR FH Body Kit (100-4006-129). This kit includes the Freehub, as well as the drive side end cap. |
| If I am going from sram 12spd over to shimano, what do I need? | ENVE INNERDRIVE S11 HG FH Body Kit (100-4006-128). This kit includes the freehub, as well as the drive side end cap. |
| Will the foundation wheels have INNERDRIVE or ID360 internals? | For the time being, all foundation road and gravel wheels will be offered with foundation-level hubs. Stay tuned for product developments in the future. |
| What are the tooth count options for INNERDRIVE ratchet kits? | 40t, 60t, 80t, 100t |
| Will you offer ceramic bearing upgrade? | A ceramic bearing solution will soon be available. |
| What is the stock offering? |
60t – for road and gravel– Balanced performance for drop bar applications between low drag and high engagement. 80t - for mountain - For increased engagement where drag is less of a concern and fast engagement in off-road applications is more relevant. |
| What is msrp for front SES wheel? | Please refer to product page for current price |
| What is msrp for rear SES wheel? | Please refer to product page for current price |
| Can just the new inner drive system be purchased separate from the entire wheel? | Yes. The Front and Rear hubs are available for purchase through enve.com or your local/online ENVE dealer. |
| Do we offer different end caps including qr? | No QR but all freehubs come with the drive-side endcap now for INDR |
| What bearings are used? | For all bearing information refer to the bearing breakdown page article here. ENVE INNERDRIVE Premium HUB Bearing Info |
| Who makes ENVE INNDERDRIVE hubs? | Innerdrive hubs are designed and patented by ENVE and made at 3rd party manufacturing facility |
| What are the bearings made of? | ENVE INNERDRIVE hubs feature high-performance full stainless-steel bearings and races to ensure fast rolling, corrosion resisting longevity. Non-contact inner bearing seals, as well as full-contact outer seals, ensuring debris-free performance, bearing longevity, and low rolling resistance. |
| Why straightpull instead of j-bend? | 1. Simpler Spoke Lengths |
| Our hub shell design allows for the use of a single spoke length for any given rim diameter. This means one spoke length per wheel (Example: 4.5 Front Wheel uses a single 277mm length spoke throughout the wheel, and a 4.5 Rear Wheel uses a single 271mm length spoke throughout the wheel). | |
| 2. Silent Spoke Crossings | |
| The straight-pull hub shell puts space between each spoke ensuring that your ENVE Wheelset cannot experience spoke creaking. | |
| 3. Lateral Stiffness | |
| ENVE’s new straight-pull hubs improve lateral stiffness by 8-10%, maximizing power transmission and efficiency. | |
| 4. Anti-Twist Spoke Hole | |
| To further improve the quality of the wheel build, spoke tension consistency, and to prevent spoke damage during wheel build, an anti-twist feature has been included to prevent the spoke from twisting during wheel build or while riding. This feature does not prevent the use of normal round spoke heads. | |
| Preferred aftermarket grease in a bind when proprietary grease is unavailable? | Please use the ENVE INNERDRIVE Grease. Small application bottles, as well as larger application bottles for mechanics, are available. |
