Do you have a DI2 battery holder for the Fray seat post? If not, what is your recommendation for mounting the DI2 battery?

Yes, the Aero seatpost that comes with the Fray includes a Di2 plug shaped for the D shaped Aero Seatpost.

• The Fray uses a UDH hanger, available from wherever you source your SRAM components. This rear UDH hanger also allows the installation of specific, UDH-type rear derailleurs, per SRAM's guidance.

I'd like to pre-order the DI2 cables for my Fray, what length do you recommend?

Due to all the various bar, stem, and frame sizes, we do not have the exact answer to this for every combination. For Di2 cables, lengths, and compatibility, please reach out to your authorized ENVE dealer who you plan to purchase your Fray from as they will be able to help guide you in your purchase.

• The brand, modulus, and other technical aspects of the specific carbon fibers are less important than the processes used to create the final product. ENVE uses Material Optimized Design or M.O.D. carbon in our construction. This means we use the best fiber for the required performance outcome in the part. The majority of ENVE’s products are created using unidirectional pre-preg carbon fibers, but we also employee the use of a variety of woven and spread tow fibers, strategically laid to perform a specific outcome in the part when it is called for. If it says ENVE, rest assured that you are riding the best carbon product available.

• Frame Weight: 900g (+/-50g) (56cm, Painted, No Hardware)

• The Fray is purchased as a Chassis which includes a frame, fork, headset, handlebar, stem, and seatpost. Headset bearings can be upgraded. The seatpost is proprietary, but the handlebar and stem in theory can be swapped to something other than ENVE. However, the ability to internally route the front-end cannot be guaranteed when using aftermarket parts.

• The Fray requires the use of the ENVE Aero Seatpost.
• For guaranteed internal front-end routing, the ENVE/Fray headset top bearing cover, ENVE IN-Route Stem, and a compatible ENVE handlebar must be used.

• Rear Chainstay on Melee, MOG, and Fray are all 25mm regardless of frame size.

• There is not an RTP option currently. However, custom decal kits are available to personalize your frame graphics.

Does the Fray Chassis come with the finishing kit?

Yes, all that you see in Frame Finishing Kit, is included.

• • See article: MY24 FRAME PAINT TO PANTONE COLOR GUIDE

• It is 6nm.

• No upgrade options are available from ENVE directly. The Fray comes equipped with an ENVE Integrated IS 52/IS 52 internal Drop in – 1.5” IS 52 upper and lower bearing. The exact bearing dimensions are 40x52x7 mm, 45/45 Degree.

• The Fray fork, (same as ENVE IN-Route All Road Fork) requires the use of a 1.5”/40mm inner diameter crown race.

How many spacers come with the chassis and what will fit under the stem and the top cap?

• Headset Spacers are included in the box with our IN-Route stem: 3x 10mm and 2x 5mm come in the stem box.

• The frame allows a maximum of 40mm of spacers between the bottom of the stem and the top of the bearing cover. You are welcome to run zero spacers between the top bearing cover and the stem to achieve the lowest stem stack position possible.

• Yes. 300-1029-026 includes 2x 5mm spacers and 300-1029-027 includes 2x 10mm spacers. These are unique spacers for the IN-Route stem and front end that are split in the center to allow for install of internally routed cables.

• The top bearing cover that sits below the headset spacers is 8mm thick.

• All Fray frames are purchased through authorized ENVE dealers. The dealer return policy is defined by the retail partner. See ENVE return policy HERE

• The rider weight limit is 300 lbs.

• Please see the ENVE Incidental Protection Policy

• The Fray was designed to provide clearance for a measured 40mm tire when running a 1X drivetrain

• The Fray was designed to provide clearance for a measured 38mm tire when running a 2X drivetrain

• This does not mean that no 40mm tires and/or all 38mm tires will work with a 2X drivetrain. All tires are measured and stretch differently when inflated. Test fit all tires on your bike before purchase when possible.

• Campy and SRAM mechanical 2X drivetrains are not compatible because the Fray needs continuous housing to the Front Derailleur.
• Wired Campy EPS will not work due to the large size of the plugs at the ends of EPS wires
• Shimano GRX 2x 48/31T build will not work. Front der hanger will not allow for low enough position for derailleur to accommodate proper shifting.
• SRAM T-Type/Mullet builds are not officially compatible. This is due to the minimum chainstay length recommended from SRAM. SRAM's guidance states 425mm chainstay minimum. We have found that our 420mm chainstays function with Mullet setups so the 60cm Fray appears to work fine. All other Fray frame sizes though have chainstay lengths between 415-417mm so we cannot recommend those.

• In general, we would steer you toward the MOG if you are running exclusively gravel and 40mm tires. While it can accommodate up to 40mm tires, the Fray is optimized for 31-35mm tires. While it can handle gravel riding and is an extremely versatile platform, if the bike you're looking for will be used specifically on gravel and with wider tires like 40mm, we'd steer you toward the MOG.

• Yes - SKU:100-5003-904 - Service Frame Protection Sticker Kit A

• Yes

• T47 Inboard Bearing

• 85.5mm is the bb shell width. The Fray Frame uses a standard INBOARD T47 Bottom Bracket. In terms of crank compatibility, we defer to the bottom bracket manufacturer to state which cranks work with their T47 BB. Spacers for bottom brackets or cranks needed for installation should all be included with bottom brackets or cranksets.
• 1X: WIDE/XPLR drivetrains must be run with WIDE/XPLR Cranksets/bottom brackets (47.5 chainline crank)

• No. The bottom Bracket is not included and is specific to the crank brand.

• BB torque spec is determined by the listed torque spec on your BB. If there is no torque spec listed on the BB or the company would like you to defer to the bike manufacturer, we recommend 40Nm.

• Any T47 Inboard Bearing bottom bracket
  • RECOMMENDED BOTTOM BRACKETS
    Wheels Manufacturing
  • SRAM DUB - T47-BB-29MM
  • Shimano - T47-BB-SHIM-AC
    Praxis
  • M30 Thru - 47-8101
  • Shimano - 47-3800
    Chris King
  • Shimano - Threadfit™ T47 24i
  • 30MM - Threadfit™ T47 30i
    BBInfinate
  • Shimano - T47-SH-RD-BLK-ASMCT
  • SRAM DUB - T47I-DUB-RD-BLK-ASMCT
    Kogel
  • Shimano - T47-i24
  • SRAM DUB - T47-iDUB
    Ceramic Speed
  • SRAM DUB - SKU 106796
  • Shimano - SKU 105148

Here are the BBs that should be recommended from Rotor for fitment with their cranks on the Fray frame:

RECOMMENDED BOTTOM BRACKETS

Rotor Bike Components

Rotor 30mm Spindle - T4730 INTERNAL BB STEEL BLACK OR T4730 INTERNAL BB CERAMIC RED

SRAM DUB Spindle - T4729 INTERNAL BB DUB® COMPATIBLE STEEL BLACK

Shimano or Rotor (24mm) Spindle - T4724 INTERNAL BB STEEL BLACK OR T4724 INTERNAL BB CERAMIC RED

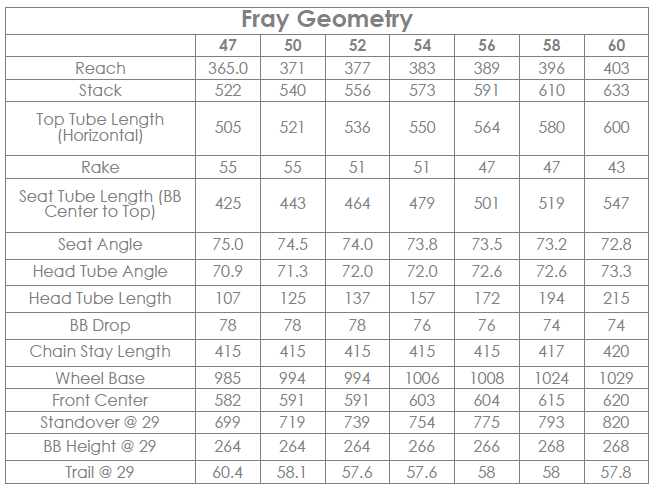

• If you do not know your fit stack and fit reach, we recommend that you procure a professional bike fit to help ensure you will be fit properly on your Fray.
• If you know your fit numbers, the ENVE Best-Fit Calculator is available to guide you in finding your ideal frame size, stem length, spacer stack, and seatpost offset.

• The stack is measured to the top of the frame and does not include the 8mm top cap. To find the stack, you would take the stack of the frame as listed by size and add 8mm to that. After you have that number you would add any spacers to the stack on top of that number.

• The Fray is designed to seamlessly integrate with the ENVE IN-Route Stem. While it may be possible to run an aftermarket stem, we do not recommend it. An aftermarket stem will potentially create routing and compatibility problems. Most importantly though, we do not offer a top bearing cover that can accommodate the entrance of housing or hoses into the head tube and therefore the head tube and headset bearings would be exposed to the elements of one elected to use an aftermarket stem.

• Tighten both top bolts first to spec. The top bolts are no gap. Then tighten bottom bolts to spec. These should show a gap. 6nm for top and bottom

• Yes. All ENVE handlebars that feature IN-Route compatibility can be used.

• The Fray is a performance road bike with geometry and handling that is slightly more relaxed than the Melee, which is a purpose-built road race bike. The Fray loves long sweeping corners, mountain passes, and long and sometimes rough roads. It’s the bike you should probably be riding if you’re not road/criterium racing on the regular. Despite the Fray’s ample tire clearance, it IS NOT a gravel bike and will leave those attempting to use it as such wanting for more. If you want a bike that will be ridden off-road with tires >38mm, look to the MOG. If a tire <38mm is preferred for the gravel/offroad riding you do, the Fray may be perfect for you.

• The Fray is best categorized as an endurance/all-road bicycle. As such, the Fray’s geometry is more relaxed than the Melee’s purpose-built race geometry. The Custom Road, being a full-custom bespoke build, can be made with either a race or endurance/all-road geometry. The Fray is a road bike and the MOG is a gravel bike. Compared to the MOG, the Fray has a shorter wheelbase, slightly taller stack, and much steeper headtube angle to ensure confident handling on the road.


• ENVE does not offer a warranty on non-ENVE branded drivetrains or components. See the original manufacturer for warranty support per our warranty policy.

• No, warranty and incidental damage cover damage or defects to the frame itself. Decals or stickers are considered cosmetic and are not covered.

• You can use our decal builder
• You can directly contact our decal vendor Stikrd.com

• Frame/Chassis Box – this will include the Frame, Fork, finishing kit, headset, torque wrench, small parts, and support card. The bar, stem, and seatpost will be shipped in individual packaging.  If you purchased wheels, saddle, bar tape, tires, computer mount, or any additional items they will ship in their own packaging.

• No, but the Scicon Aerocomfort TSA 3.0 travel bag with ENVE branding is available for purchase aftermarket from your local ENVE dealer.

• Chassis only – Ships from ENVE directly to your local authorized ENVE dealer.
• Rolling Chassis – Available for purchase local authorized ENVE dealer.
• Complete Bike – Available for purchase local authorized ENVE dealer.
  • ENVE will not be selling complete bikes to dealers at this time
  • ENVE will not be offering Fray direct-to-consumer sales at this time

• No. However, if you would like to purchase a co-branded ENVE x Selle Italia SLR Boost Saddle, these are available from your local ENVE dealer.

• The frame is a monocoque construction

• No. The Fray uses a proprietary D-shaped aero seatpost.

• ENVE Integrated IS 52/IS 52 internal Drop in – 1.5” IS 52 upper and lower Bearing with a 40ID made by Token.

• ENVE is new to the frame game, but we’re not new to composites and aerodynamic design. After more than a decade of developing rim shapes in the fastest frames on the planet, we’ve learned a thing or two about what makes a bike fast. As a wheels-first brand, we have the unique opportunity to design a frame from the wheels up, not the frame down. The result is a complete bicycle and wheel system that achieves holistic real-world performance that those who don’t have wheel experience are more greatly challenged to achieve.

• USA, Canada, UK, France, Germany, Italy, Spain, Japan, South Korea, China, Hong Kong, Taiwan, Singapore, Indonesia, Cambodia, Malaysia, Australia, New Zealand, Czech Republic, Poland.

• Flat Mount disc brake

• For the brake calipers you elect to install on your Fray, you'll use the caliper bolts supplied with your brake caliper from the brake manufacturer, as the distance through the frame to the caliper is a distance that works fine with standard brake caliper bolts.

• Fork 160 or180
• Frame 160 or140

• Yes

• No there will be no official Fray Owner's manual at this time. However, please scan the QR code on the hang tag that comes with the bike. This will bring you to our support site for all pertinent information including warranty information, product registration instructions, and assembly instructions.

• Torque specs on all components can be found on those specific components.

• ENVE.com Support Parts
• Fray Small Parts Support

• For a road double crank, we’ve tested up to 55T big ring and 42T small ring.

• For 1x cranks: The Fray is compatible with ALL 1x chainrings using a chainline of 44mm or greater. The largest we have tested at this 44mm chainline is a ROUND 54T and and an ELLIPTICAL 52T. This 44mm chainline is the standard chainline that most crank manufacturers use for their 1x cranks but please consult with your crank brand if concerned with their standard on chainline measurement of their crank.

• Note that chain ring position on the crank and Q factor can affect this so use the above as a guide as you determine 1x chainring size

• 1X: WIDE/XPLR drivetrains must be run with WIDE/XPLR Cranksets/bottom brackets (47.5 chainline crank)

• Sram minimum chanring sizes for proper front derailleur function is 46/33.
• Shimano GRX 48/31 is right on the edge of what may work, but shifting may not be optimal.
• We generally recommend using a standard double crankset or a 1x drivetrain for best performance with your ENVE frameset.

Is the stem available as an aftermarket product?

• Yes. You can purchase the IN-Route Stem on www.enve.com

• -7 degree or + 12 degree are both offered for our IN-Route Stem.

• The Axle to Crown measurement on all 4 rakes of Fray fork is 380mm A-C

• Please see ALL ENVE FORK THRU AXLE DIMENSIONS for those items.

• No, the front derailleur hanger is riveted to the frame. We do not offer a blank to go over that area because of this. There is a DI2 plug supplied with the frame however if you are not routing housing or wires through the frame. That said, if running a 1x instead of wanting to remove the front hanger, we'd recommend running a chain guide potentially, such as this aftermarket option: https://www.wolftoothcomponents.com/products/gnarwolf-chainguide-for-braze-on-mount
