When installing tubeless tape on an ENVE rim, please always use ENVE specific tubeless tape with your ENVE rims and use the specific width listed below/included with your rims. Failure to use the correct tubeless tape may result in voiding your warranty. ENVE Tubeless Tape is a tensilized polypropylene with a silicone adhesive.
|

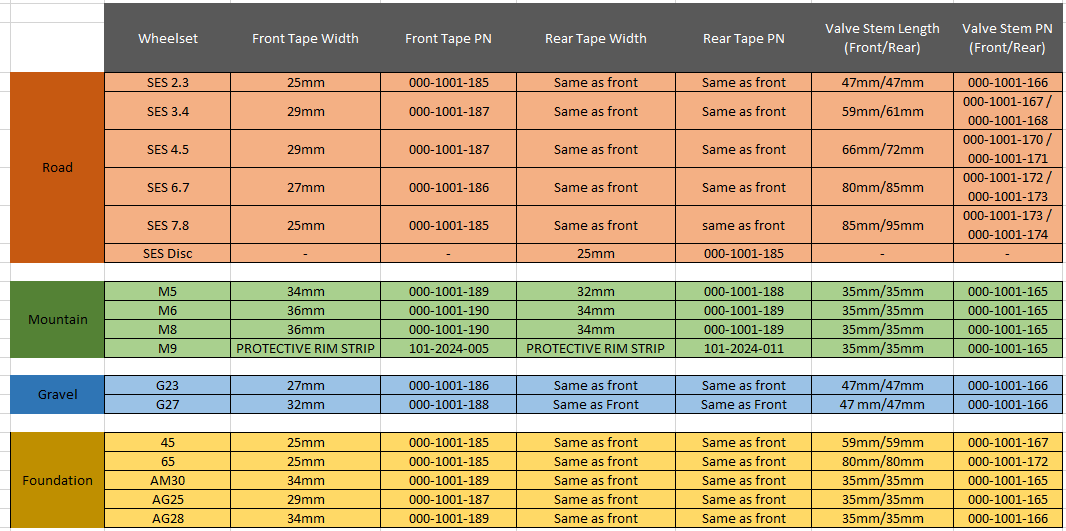

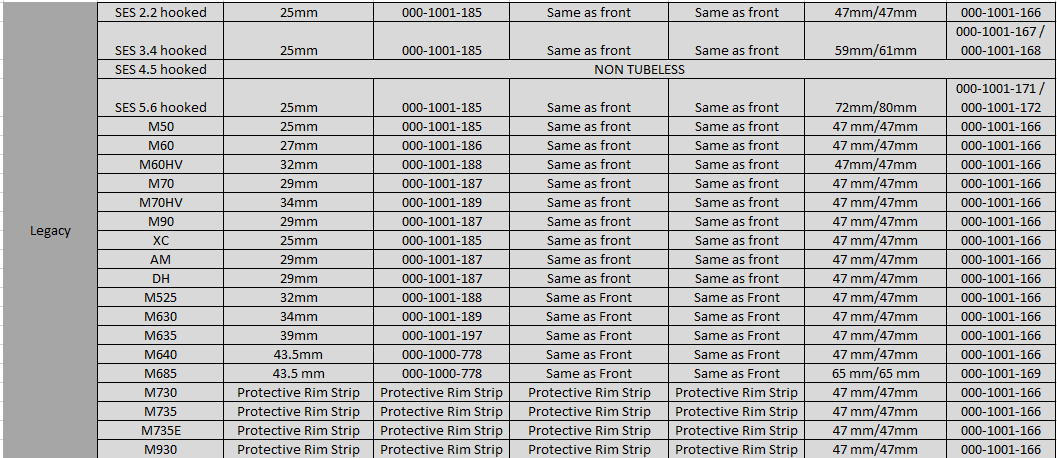

Rim Model |
Tape Width |
| SES ROAD | |
| SES 2.2 |
25mm |
| SES 2.3 (2022 Gen4) | 25mm |
| SES 3.4 (Rim and Legacy Disc) | 25mm |
| SES 3.4 AR | 29mm |
| SES 3.4 (2022 Gen4) | 29mm |
| SES 4.5 (Legacy) | Rim Strip |
| SES 4.5 AR | 29mm |
| SES 4.5 (2022 Gen4) | 29mm |
| SES 5.6 (Rim and Disc) | 25mm |
| SES 6.7 (2022 Gen 4) | 26.5mm |
| SES 7.8 (Rim and Disc) | 25mm |
| SES Disc (Rim and Disc) | 25mm |
| G SERIES | |
| G23 | 26.5mm |
| G27 | 30.5mm |
| M SERIES | |
| M525 | 29mm |
| M630 | 33.5mm |
| M635 | 39mm |
| M640 | 43.5mm |
| M685 | 43.5mm |
| M730 | M Series Rim Strip |
| M735 | M Series Rim Strip |
| M930 | M Series Rim Strip |
| FOUNDATION SERIES | |
| ENVE 45 | 25mm |
| ENVE 65 | 25mm |
| AG25 | 29mm |
| AG28 | 30.5mm |
| AM30 | 33.5mm |
| LEGACY | |
| M50 | 25mm |
| M60 | 26.5mm |
| M60HV | 30.5mm |
| M70 | 29mm |
| M70HV | 33.5mm |
| M90 | 29mm |
| XC | 25mm |
| AM | 29mm |
| DH | 29mm |
