MOG Small Parts Support

  • Updated

*Please note for better resolution, a .pdf is available for download at the bottom of this page.


*IN-Route Stem faceplate not listed here. Proper part number for the faceplate for that stem is:

300-1029-010
HW IN-Route Stem Faceplate



Mog_Service_Kits_and_Drawings-4.jpgMog_Service_Kits_and_Drawings-5.jpgMog_Service_Kits_and_Drawings-6.jpg




*Top cap and compression plug part number above is incorrect. For MOG IN-Route Stem, please use 000-1000-983
Stem Aero Road IN-Route Cap Service Kit.

Mog_Service_Kits_and_Drawings-20.jpgMog_Service_Kits_and_Drawings-19.jpgMog_Service_Kits_and_Drawings-18.jpgMog_Service_Kits_and_Drawings-17.jpg

*100-5004-024 above includes pre-installed 3M adhesive for installation.

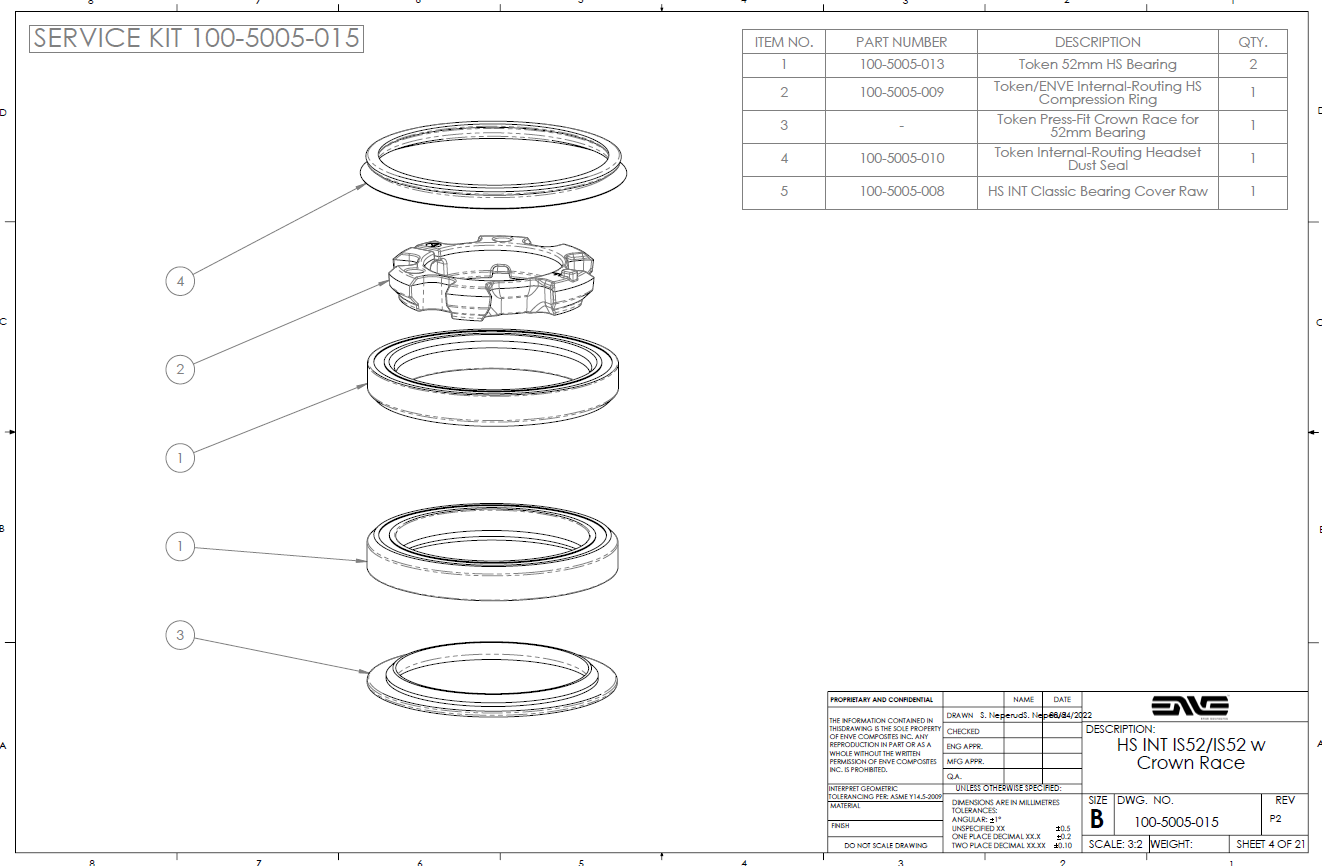

*NOTE THAT THE ABOVE HEADSET PART NUMBER HAS CHANGED AND IS: 100-5005-015

IT DOES NOT INCLUDE THE TOP BEARING COVER IN THE IMAGE. THAT PART IS SOLD SEPARATELY TO COLOR MATCH YOUR MELEE OR MOG FRAME. PART NUMBER BELOW.

Mog_Service_Kits_and_Drawings-15.jpgMog_Service_Kits_and_Drawings-14.jpgMog_Service_Kits_and_Drawings-13.jpgMog_Service_Kits_and_Drawings-12.jpgMog_Service_Kits_and_Drawings-11.jpg

*No plug is provided for rear Di2 wire from frame to rear derailleur. ENVE provides wire shrink wrap included with “Frame Finishing Kit” 100-5002-216 to wrap wire and take up space in the 6mm port at the back of the rear triangle.
